Pushing engineering and performance boundaries is one of the few motorcycles that truly deserve to be called Instant Icons.

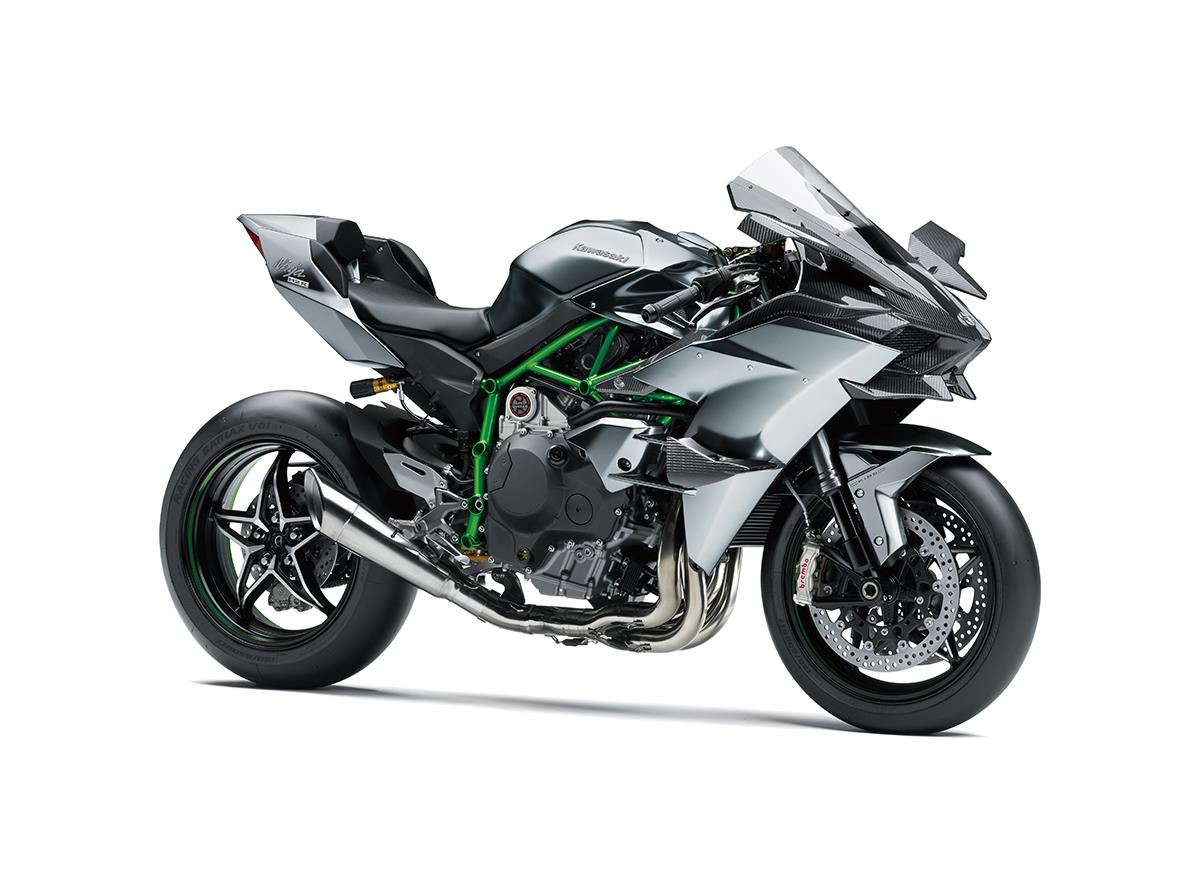

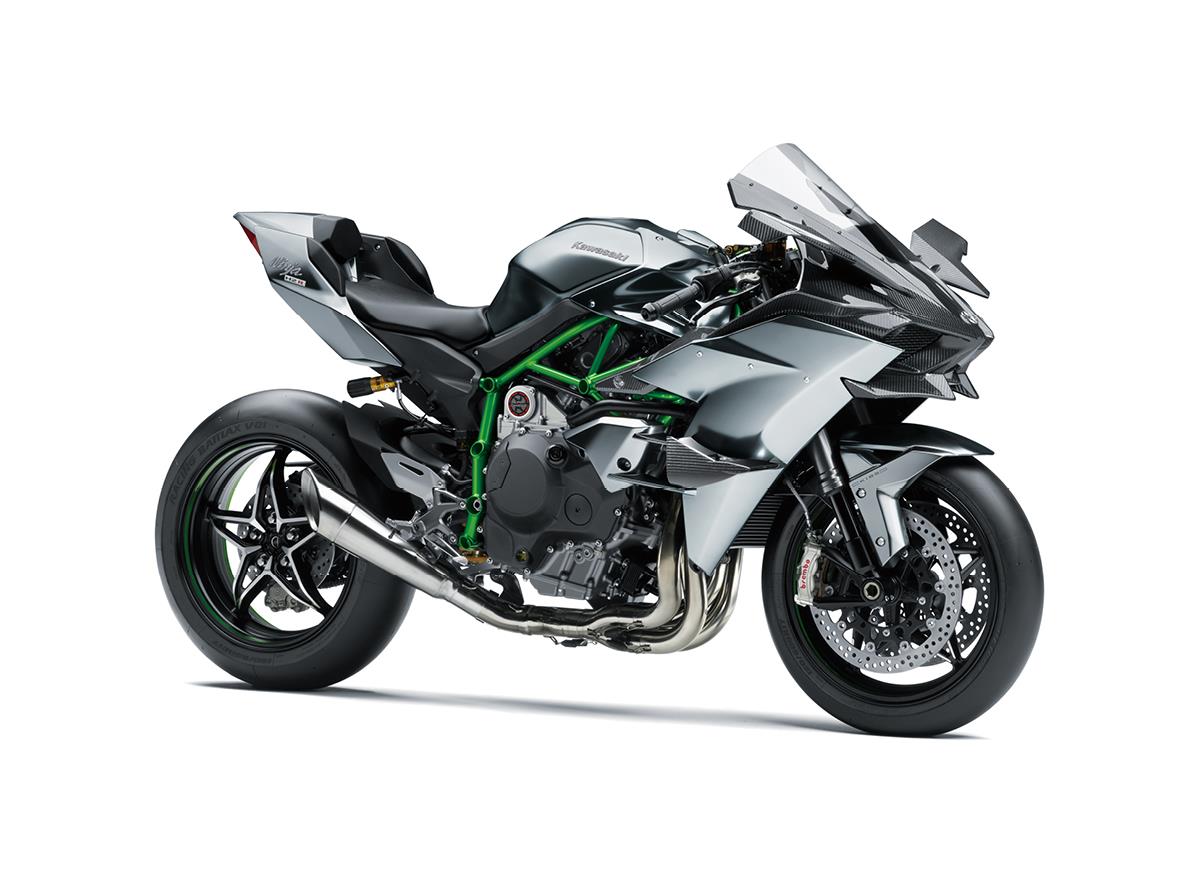

Created without compromise and benefiting from the collective strength of Kawasaki Heavy Industries, the Ninja H2R demands respect and attracts the most skilled and committed riders.
The H2R features: Ohlins rear suspension, up and down quick-shifter, aerodynamic devices, cornering management and a bank angle display.
Ninja H2R, play your part in history.
This vehicle is not manufactured for public road use.
Engine
Engine Type
Liquid-cooled, 4-stroke In-Line Four with Supercharger
Displacement
998
Bore x stroke
76 x 55 mm
Compression ratio
8.3:1
Valve/Induction system
DOHC, 16 valves
Fuel system
Fuel injection: 50 mm x 4 with dual injection
Ignition
Digital
Starting
Electric
Lubrication
Forced lubrication, wet sump with oil cooler
Performance & Transmission
Maximum Power
228 kW {310 PS} / 14,000 rpm
Maximum power with RAM Air
240 kW {326 PS} / 14,000 rpm
Maximum torque
165 N•m {16.8 kgf•m} / 12,500 rpm
Transmission
6-speed, dog-ring
Final Drive
Sealed chain
Clutch
Wet multi-disc, manual
Frame & Dimensions
Frame type
Trellis, high-tensile steel with Swingarm Mounting Plate
Rake/Trail
108 mm
Wheel travel
Front - 120 mm / Rear - 135 mm
Steering angle
27 / 27
Seat Height
830 mm
Curb Mass
216 kg
Ground Clearance
130 mm
Dimensions (L x W x H)
2,070 x 850 x 1,160 mm
Wheelbase
1,450 mm
Fuel Capacity
17 litres
Brakes & Suspension
Suspension front
43 mm inverted fork with rebound and compression damping, spring preload adjustability and top-out springs
Suspension Rear
New Uni-Trak, Öhlins TTX36 gas-charged shock with piggyback reservoir, compression damping, rebound damping, preload adjustability and top-out spring
Brakes Front
Dual semi-floating 330 mm Brembo discs. Caliper: Dual radial-mount, Brembo Stylema monobloc, opposed 4-piston
Brakes Rear
Single 250 mm disc. Caliper: Brembo, opposed 2-piston
