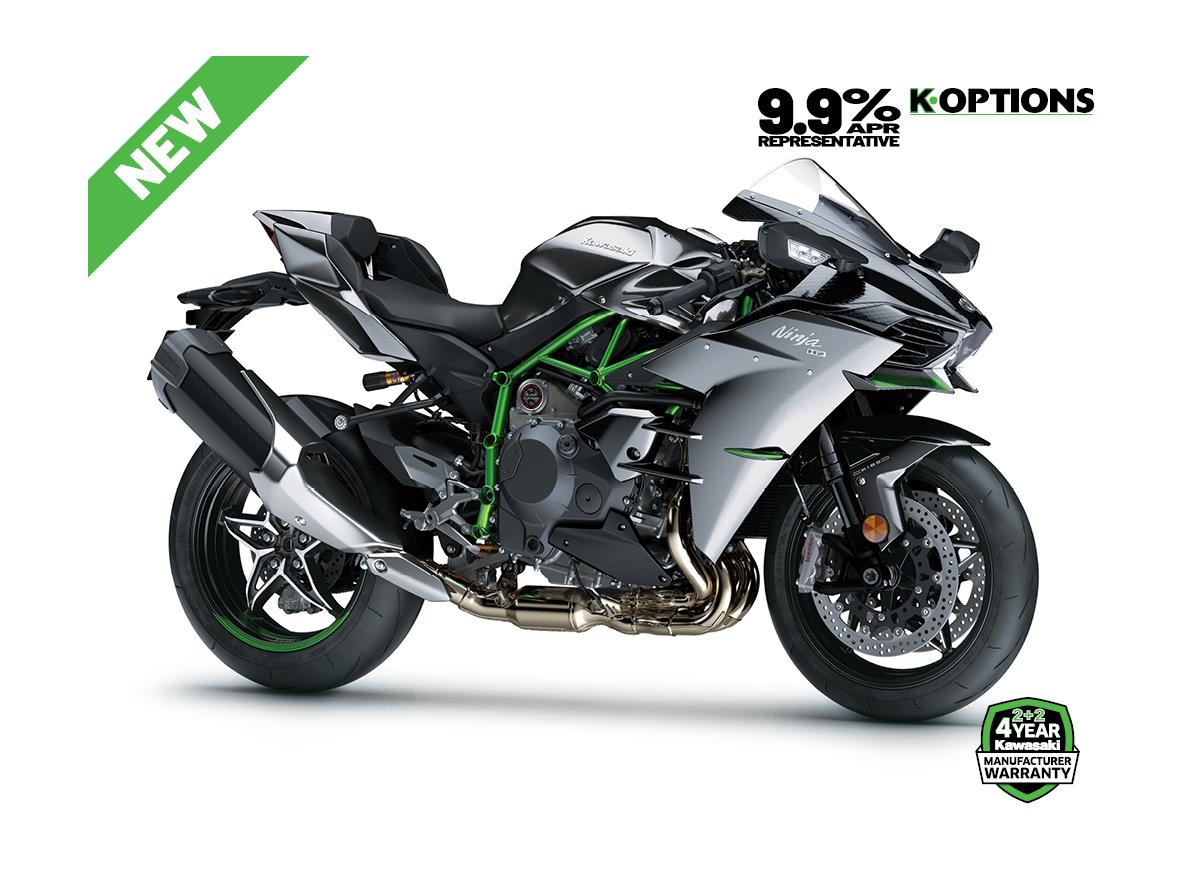

The new Ninja H2 Carbon proudly takes its place as a modern evolution of Kawasaki's supercharged flagship.
A new 998cc In-Line Four supercharged engine boasts strong low- to mid-range torque paired with the Ninja H2 Carbon's distinctive high-rpm acceleration sensation. Complementing the high level of control offered by a chassis and bodywork designed to harness the 300+ PS of the mighty Ninja H2R, Brembo's latest Hypure front brake calipers deliver flagship-worthy stopping performance.
Additionally, new aviation-inspired instrumentation contributes a visual element to the Ninja H2 Carbon's exhilarating exhilarating acceleration, while an advanced suite of rider support technology offers intuitive control—empowering you to confidently explore its phenomenal performance in a wide range of riding situations.
With every twist of the throttle, the Ninja H2 Carbon offers a riding experience unlike anything else on the road.
Engine
Engine Type
Liquid-cooled, 4-stroke, in-line four with Supercharger
Displacement
998
Bore x stroke
76.0 x 55.0 mm
Compression ratio
10.2:1
Valve/Induction system
DOHC, 16 valves
Fuel system
Fuel injection: O 50 mm x 4 with dual injection
Ignition
Digital
Starting
Electric
Lubrication
Forced lubrication, wet sump with oil cooler
CO2 Emission
136g/km
Performance & Transmission
Maximum Power
147.1 kW {200 PS} / 11,000 rpm
Maximum power with RAM Air
154.0 kW {209 PS} / 11,000 rpm
Maximum torque
135 N•m {13.8 kgf•m} / 8,500 rpm
Transmission
6-speed, dog-ring
Final Drive
Sealed Chain
Clutch
Wet multi-disc, manual
Frame & Dimensions
Frame type
Trellis, high-tensile steel, with Swingarm Mounting Plate
Rake/Trail
24.5/103 mm
Wheel travel
Front:120 mm Rear: 135 mm
Steering angle
27/27
left / right
27 / 27
Seat Height
825mm
Curb Mass
238 kg
Ground Clearance
130mm
Dimensions (L x W x H)
2,085 x 770 x 1,125 mm
Wheelbase
1,455 mm
Fuel Capacity
17 litres
Brakes & Suspension
Suspension front
43 mm inverted fork with rebound and compression damping, spring preload adjustability and top-out springs
Suspension Rear
Uni-Trak, Ohlins TTX36 gas-charged shock with piggyback reservoir, compression damping, rebound damping, preload adjustability and top-out spring
Brakes Front
Brembo radial-mount, Hypure monobloc, opposed 4-piston, Dual Semi floating 330mm Brembo discs
Brakes Rear
Single Disc 250mm
